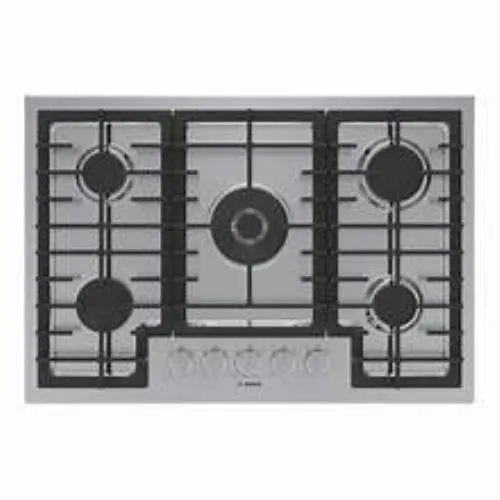

Product Overview
Knob color:
Stainless Steel Appearance
Control location:
Front-center
Valves:
Five 9-level gas step valves
Ignition system:
Electronic; thermocouple flame monitor control
Cooktop surface material:
Stainless steel
Grate material:
Cast iron
Grate features:
Continuous grates, dishwasher safe
Element Performance
Total BTU load (NG / LP):
42,700 / 41,400
Power of front left burner (NG / LP):
3,400 / 3,400
Power of back left burner (NG / LP):
6,000 / 6,000
Power of center burner (NG / LP):
17,000 / 15,700
Power of back right burner (NG / LP):
10,300 / 10,300
Power of front right burner (NG / LP):
6,000 / 6,000
Technical Details
Energy source:
Natural Gas (factory set)
Convertible to LP:
Yes (kit included)
Dimensions & Weight
Overall appliance dimensions (HxWxD):
4 1/2" x 31" x 21 1/4"
Required cutout size (HxWxD):
2" x 28 15/16" x 19 1/8"
Minimum distance from counter front:
1 7/8"
Minimum distance from rear wall:
3"
Accessories
LP Conversion Kit:
Included
Griddle:
HEZ9GR58UC (Optional, sold separately)
Wok Ring:
HEZ298102 (Optional, sold separately)
Features:
FlameSelect
- Eliminate the guesswork of cooking with FlameSelect
- Introducing FlameSelect on Bosch cooktops, an entirely new and better way to cook with gas. 9 preset power levels let you easily adjust flame level for more precise, controlled heating.
- Whether you're rapidly bringing water to an intense boil or delicately melting chocolate, the numbered flame levels deliver the exact temperature every time.
- There's no more hot or cold spots, just precision heating for perfect results.
Dual-Flame Power Burner
- Boil water quickly with a Dual-Flame Power Burner.
- The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease.
- Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.

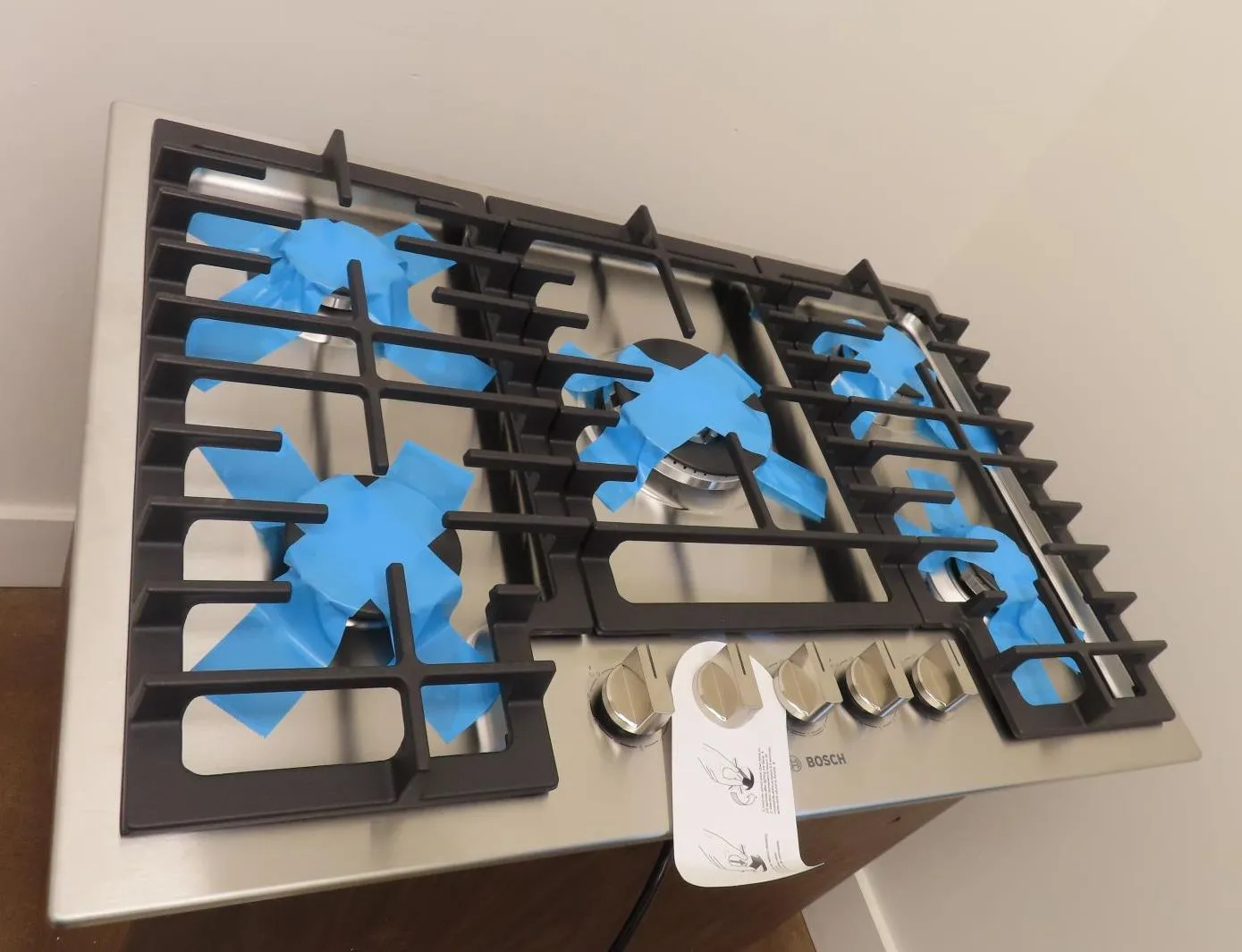

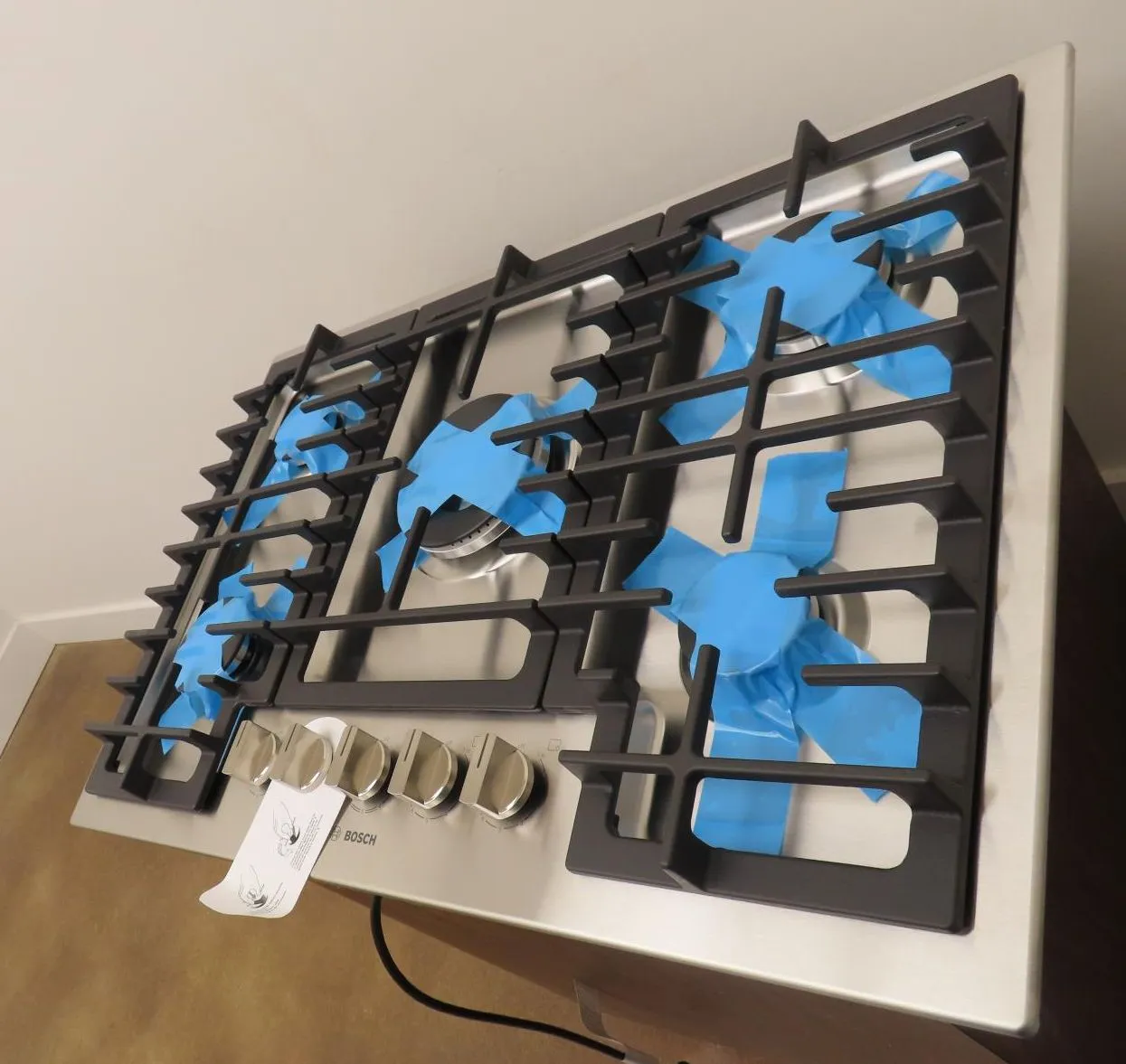

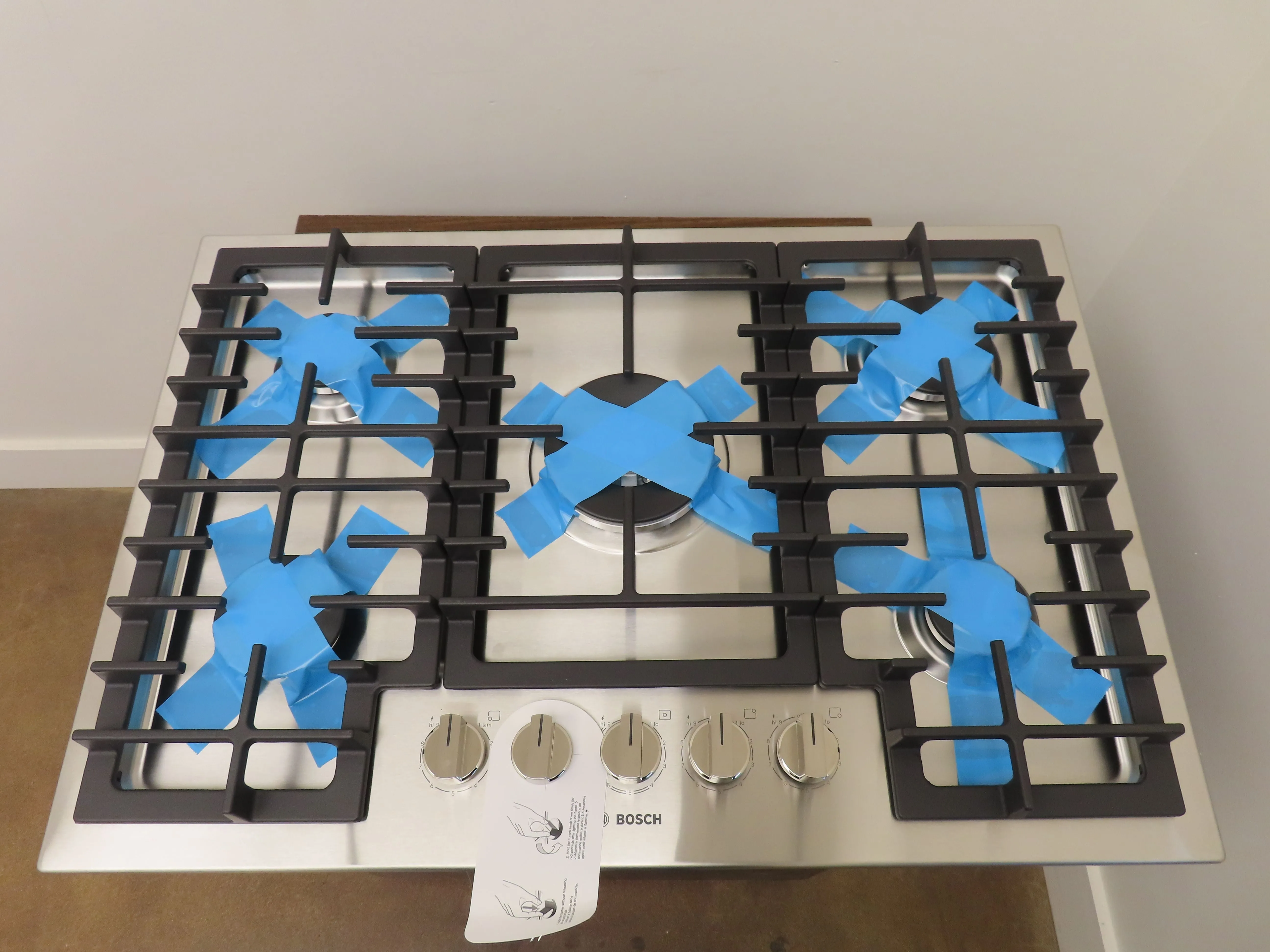

Continuous Cast-Iron Grates
- The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
Dishwasher-Safe Grates
- A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
OptiSim Burner
- Simmer delicate sauces with the OptiSim Burner.
- The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
LED Burner Indicator
- Sleek Knobs with LED Indicators.
- Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.
Easy-to-Clean
- The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever.
